d106 thermostat safety 140°c closed circuit

Description

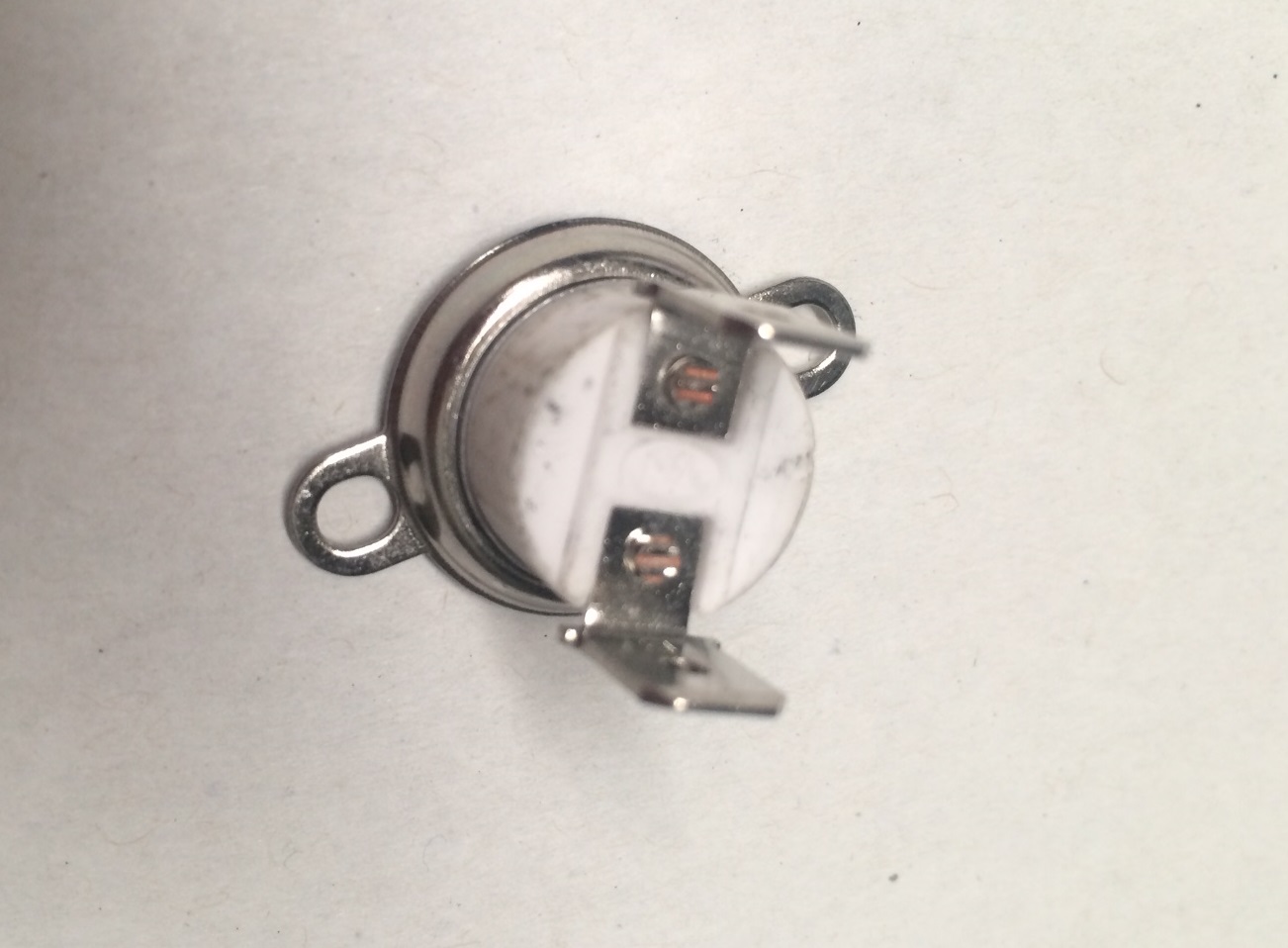

THERMOSTAT SAFETY 140°C CLOSED CIRCUIT

Klixon Type Thermal Normally closed Cutout

Dimensions of body of cutout – diameter 14mm, height 11.7mm.

Fitted with two 6.4mm spade terminals. Ceramic body.

Maximum ratings – 16Ampere, 250Volt AC.

Cutout is normally closed at room temperature and opens when the rated temperature is reached. It resets to closed when the temperature drops below the rated temperature.
